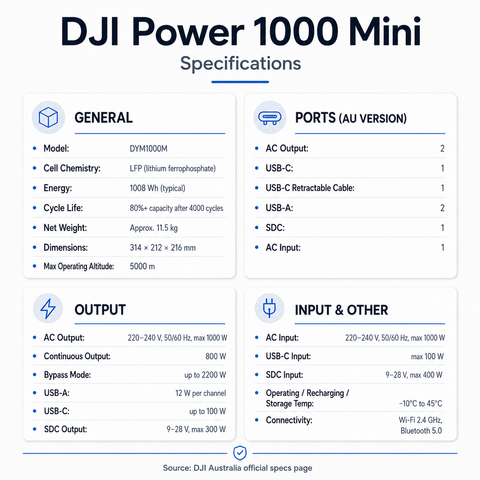

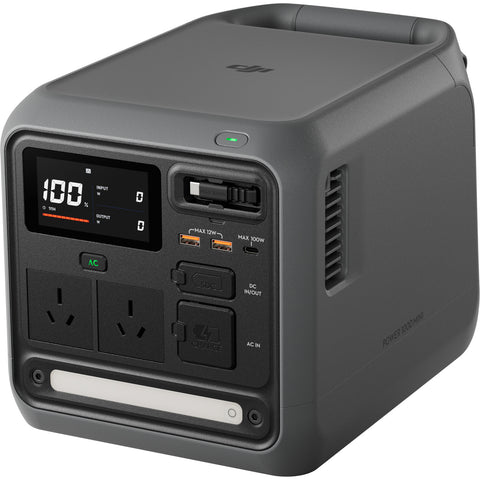

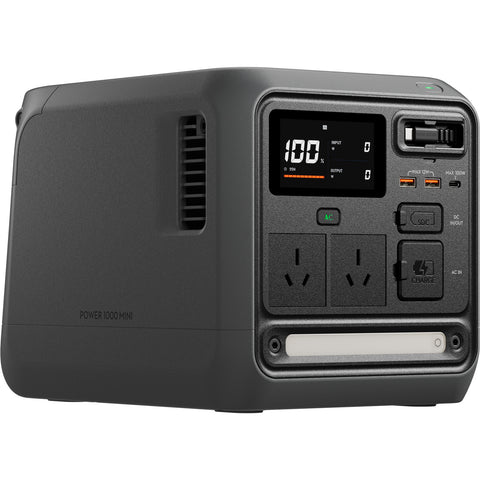

DJI Power 1000 Mini 1008Wh Portable Power Station

One cycle is defined as a complete charge and discharge. Tested in a 25°C (77°F) laboratory environment, with DJI Power 1000 Mini recharged in Standard Mode and discharged at 400W output power to external devices.

• AC output port × 2
• USB-C × 1

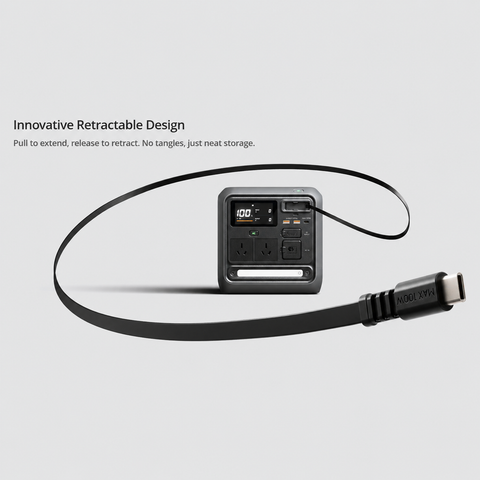

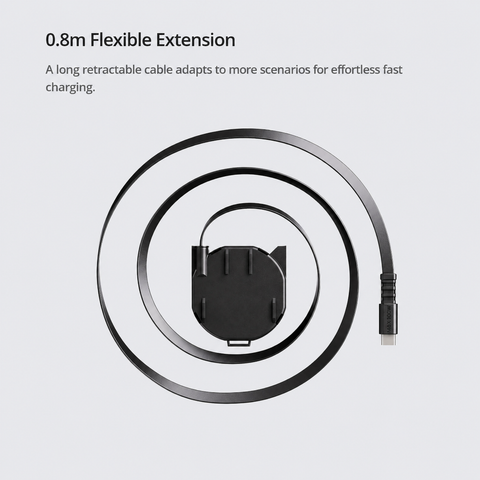

• USB-C retractable cable × 1
• USB-A × 2
• SDC × 1
• AC input × 1

AC Output

Low Voltage

• AC 100–120 V, 50/60 Hz, max current 10 A, max 1000 W (continuous at 800 W)
• AC 100–120 V, max current 14.4 A, max 1440 W (bypass mode)

High Voltage

• AC 220–240 V, 50/60 Hz, max current 4.5 A, max 1000 W (continuous at 800 W)
• AC 220–240 V, max current 10 A, max 2200 W (bypass mode)

AC output data varies by country and region.

USB-A Output

• 5 V, 2.4 A
• Max output power per channel: 12 W

USB-C Output

• 5 V, 5 A
• 9 V, 5 A
• 12 V, 5 A
• 15 V, 5 A
• 20 V, 5 A
• Max output power per channel: 100 W*

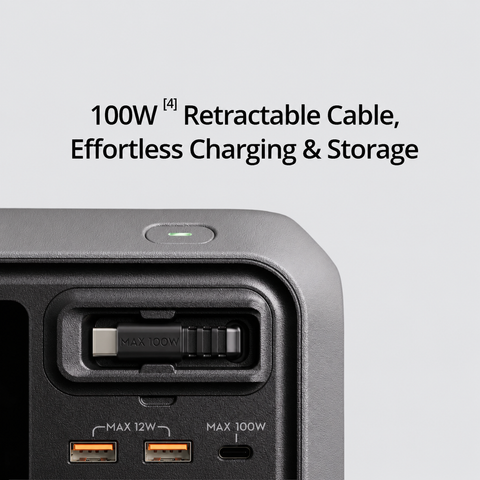

* The USB-C port supports a max output power of 100 W. When charging devices concurrently via the retractable cable and USB-C port, the total output power is 150 W, with the retractable cable providing up to 100 W and the USB-C port up to 50 W.

SDC Output

SDC 9–28 V, max 300 W

AC Input

Low Voltage

• AC 100–120 V, 50/60 Hz, max current 10 A, max 1000 W (continuous at 800 W)
• AC 100–120 V, max current 14.4 A, max 1440 W (bypass mode)

High Voltage

• AC 220–240 V, 50/60 Hz, max current 4.5 A, max 1000 W (continuous at 800 W)
• AC 220–240 V, max current 10 A, max 2200 W (bypass mode)

AC input data varies by country and region.

USB-C Input

Max charging power: 100 W

SDC Input

SDC 9–28 V, max 400 W
